Pickup Microphone
Below are some models I made and I use myself.
I can also design and wind custom pickup, mainly specific ones, dedicated to non traditional shape and application.
If you want one or have specific need, just tell me about your project by sending me a mail florentcolautti[@]gmail.com

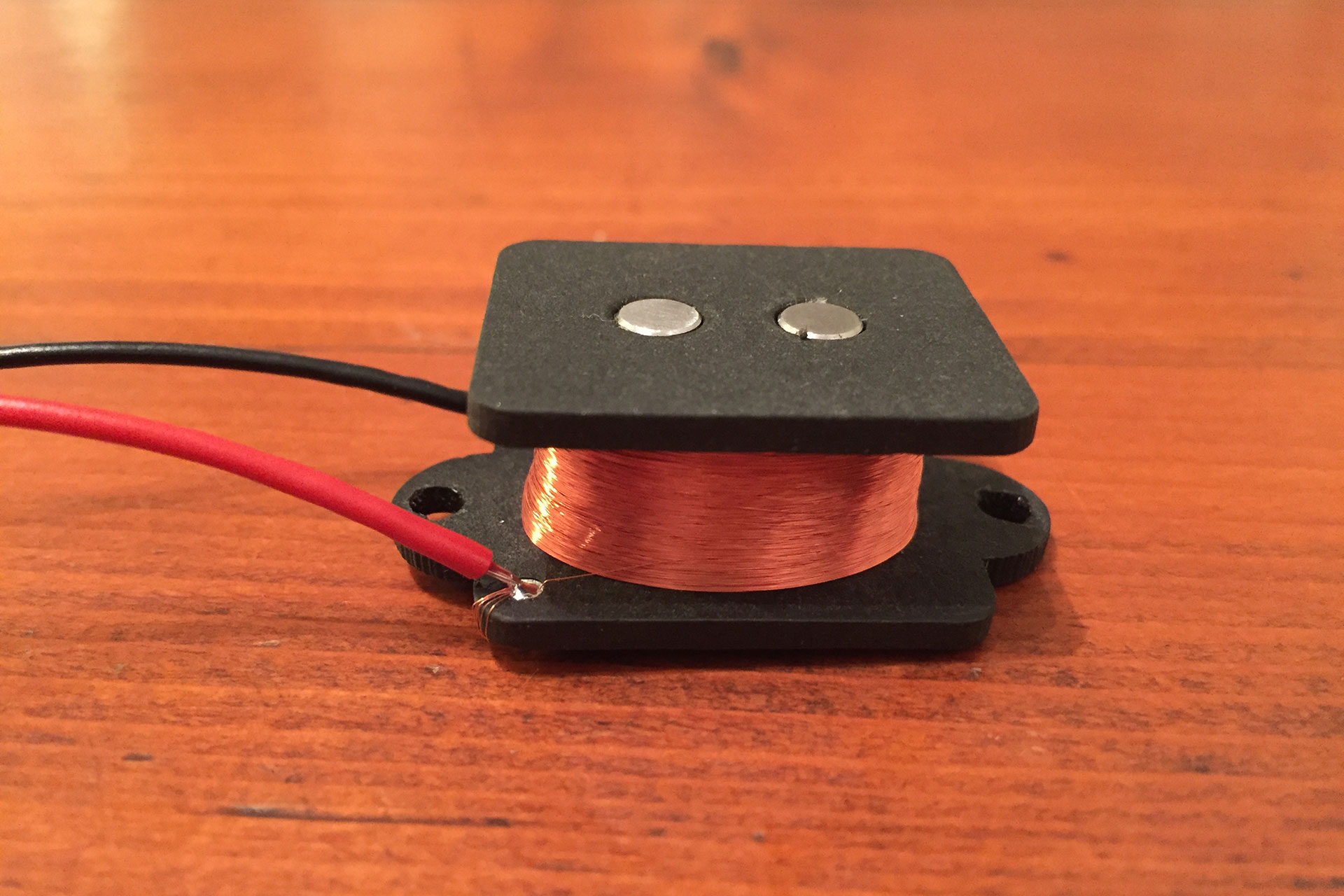

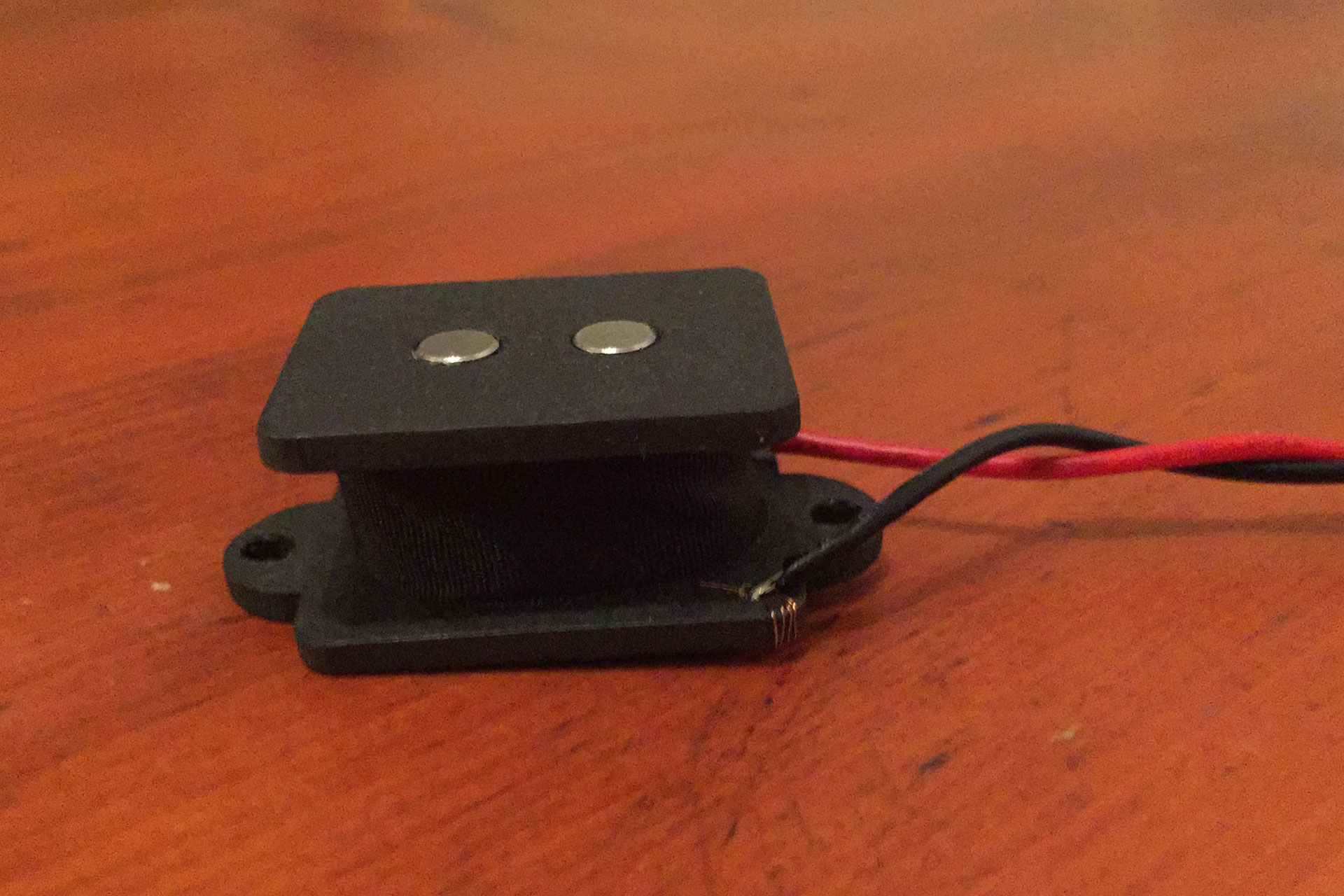

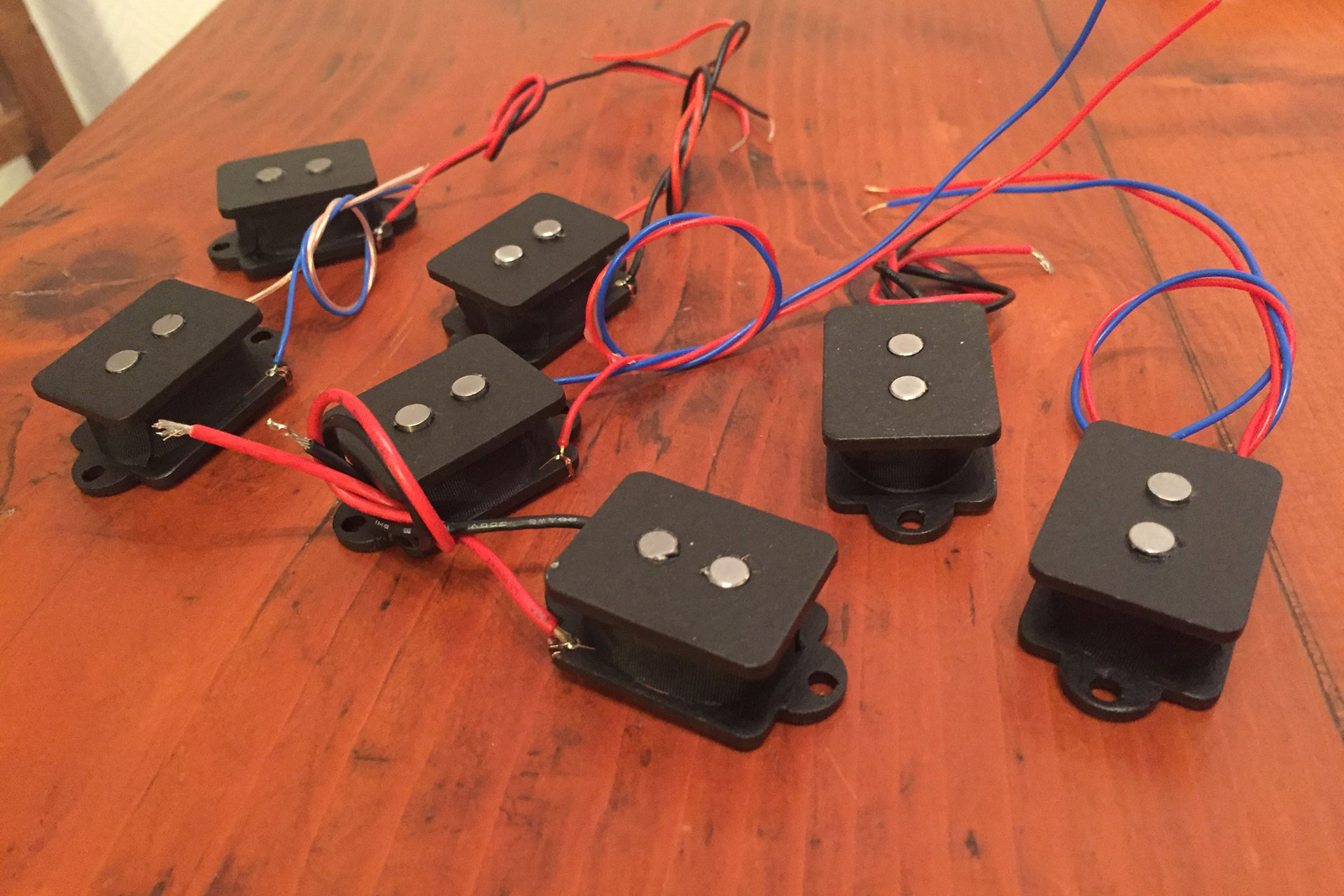

Mini Precision Style Pickup
Small size Precision bass style pickup. Clean, punchy, modern sound.
- Laser cutted Vulcanized fiber
- Single coil
- Alnico 5 magnet
- AWG 42 polycoated wire :: 11000 turn :: ~3.3kohm
- Bee/Wax potted

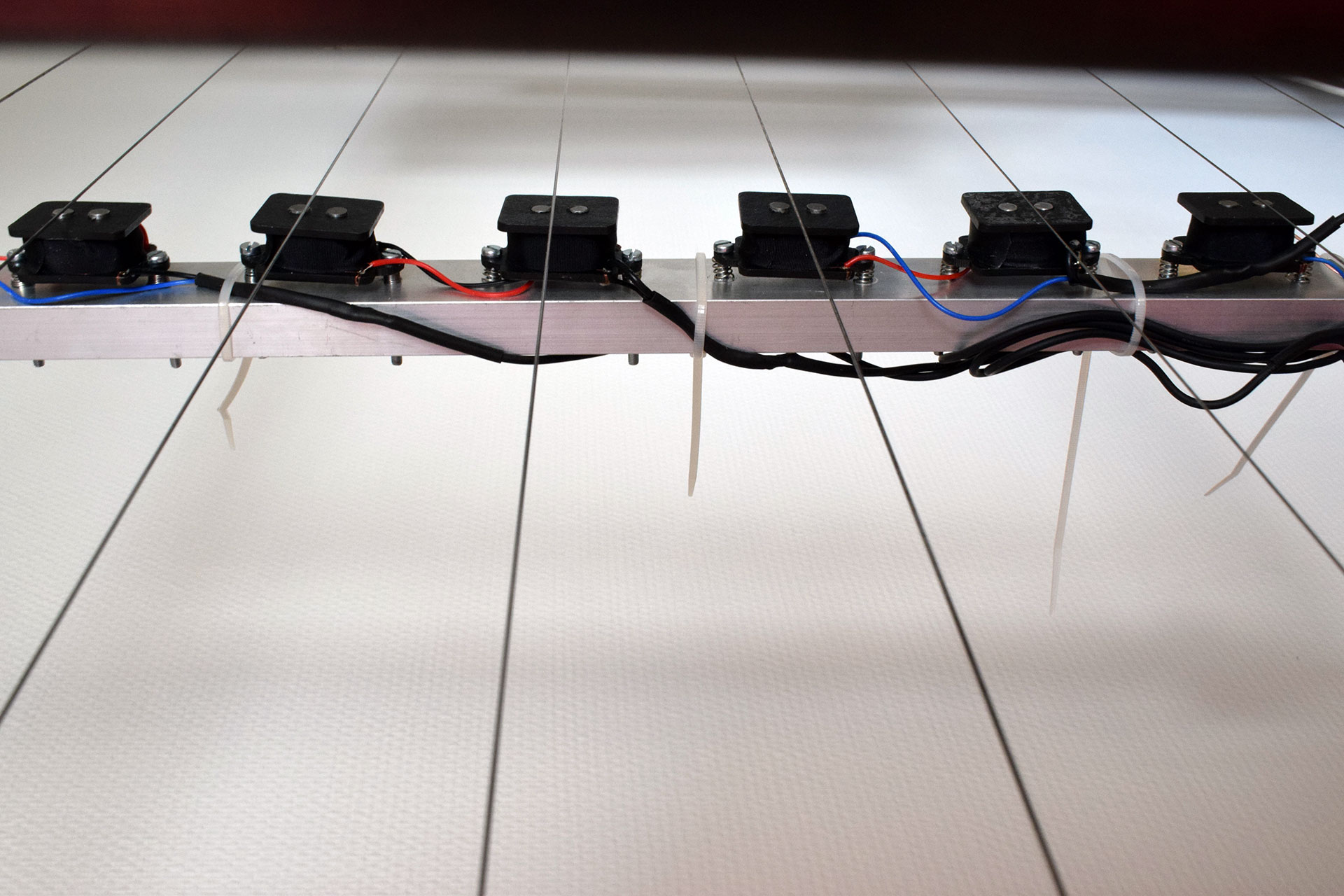

- if coupled or by 4/6/8 they should be RW/RP (Reverse Winding/Reverse Polarity)

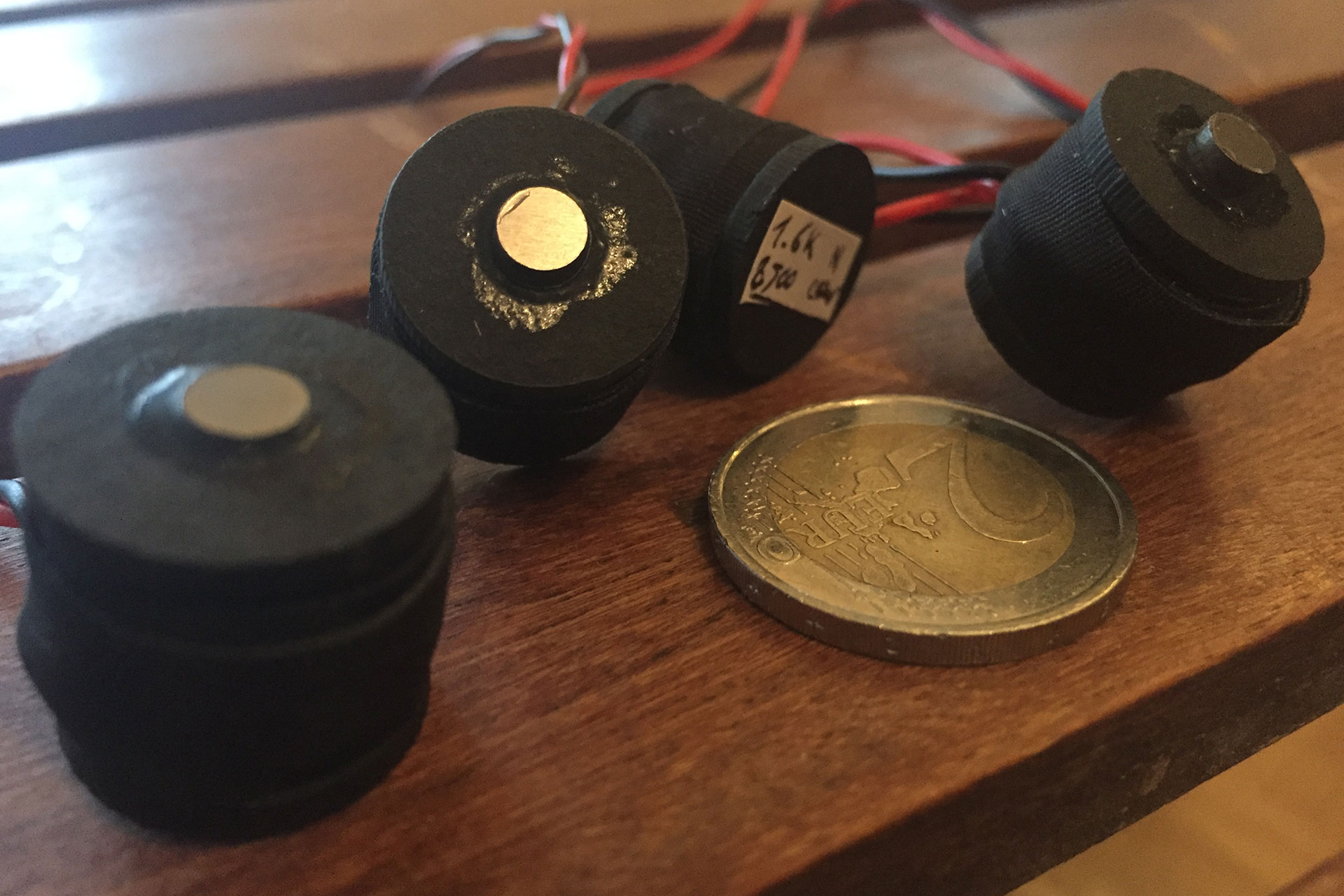

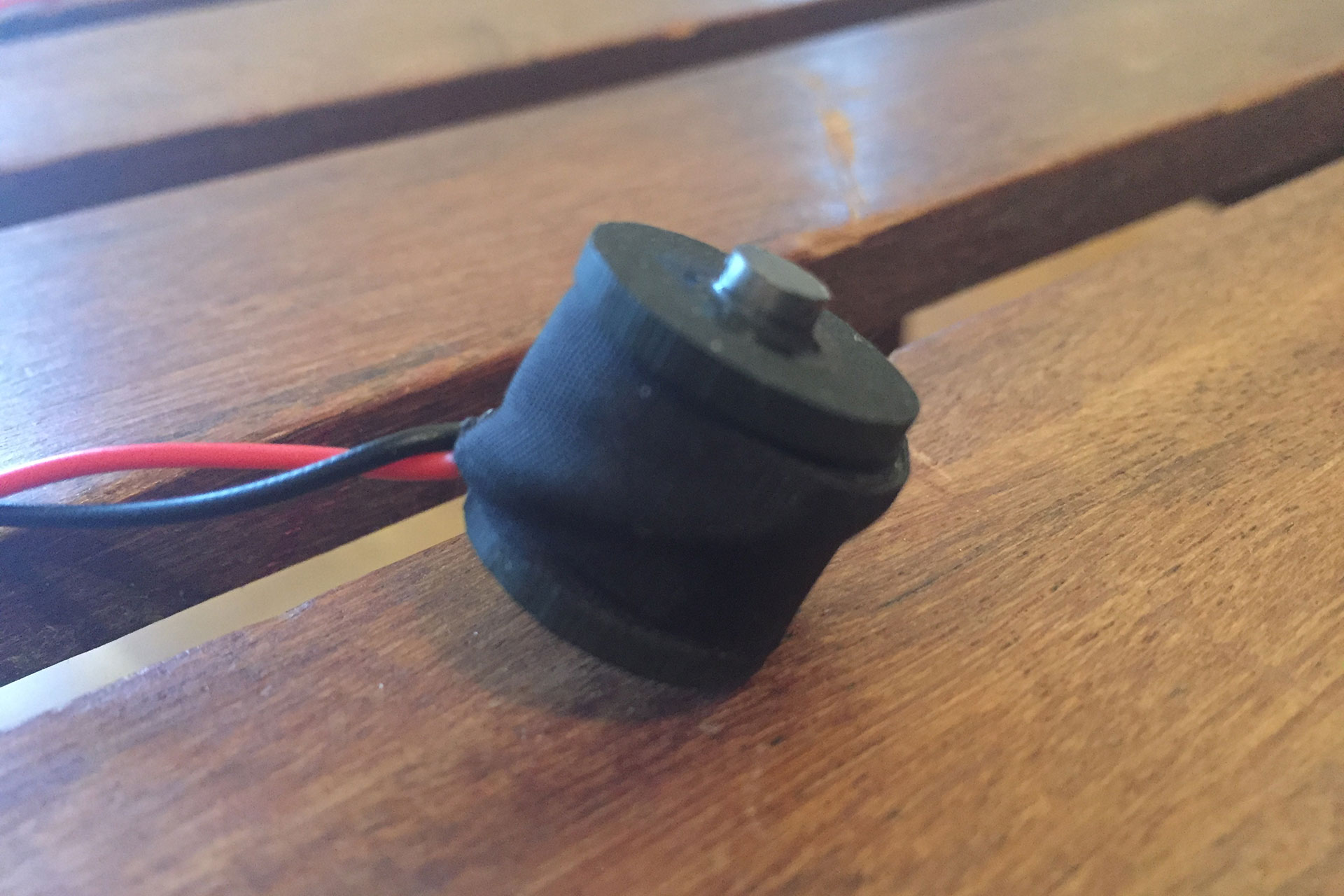

'The Coin' Pickup
Small rounded pickup (diam: 18/20mm / 20mm high). Clean, modern sound.
Can be used individually but also perfect for manage a polyphonic amplification.
They're the one's I use on my Magnetic bow system.
- Laser cutted Vulcanized fiber
- Single coil
- Alnico 5 magnet
- AWG 42 polycoated wire :: 8500 turn :: ~1.7kohm
- Bee/Wax potted
- if coupled or by 4/6/8 they should be RW/RP (Reverse Winding/Reverse Polarity)

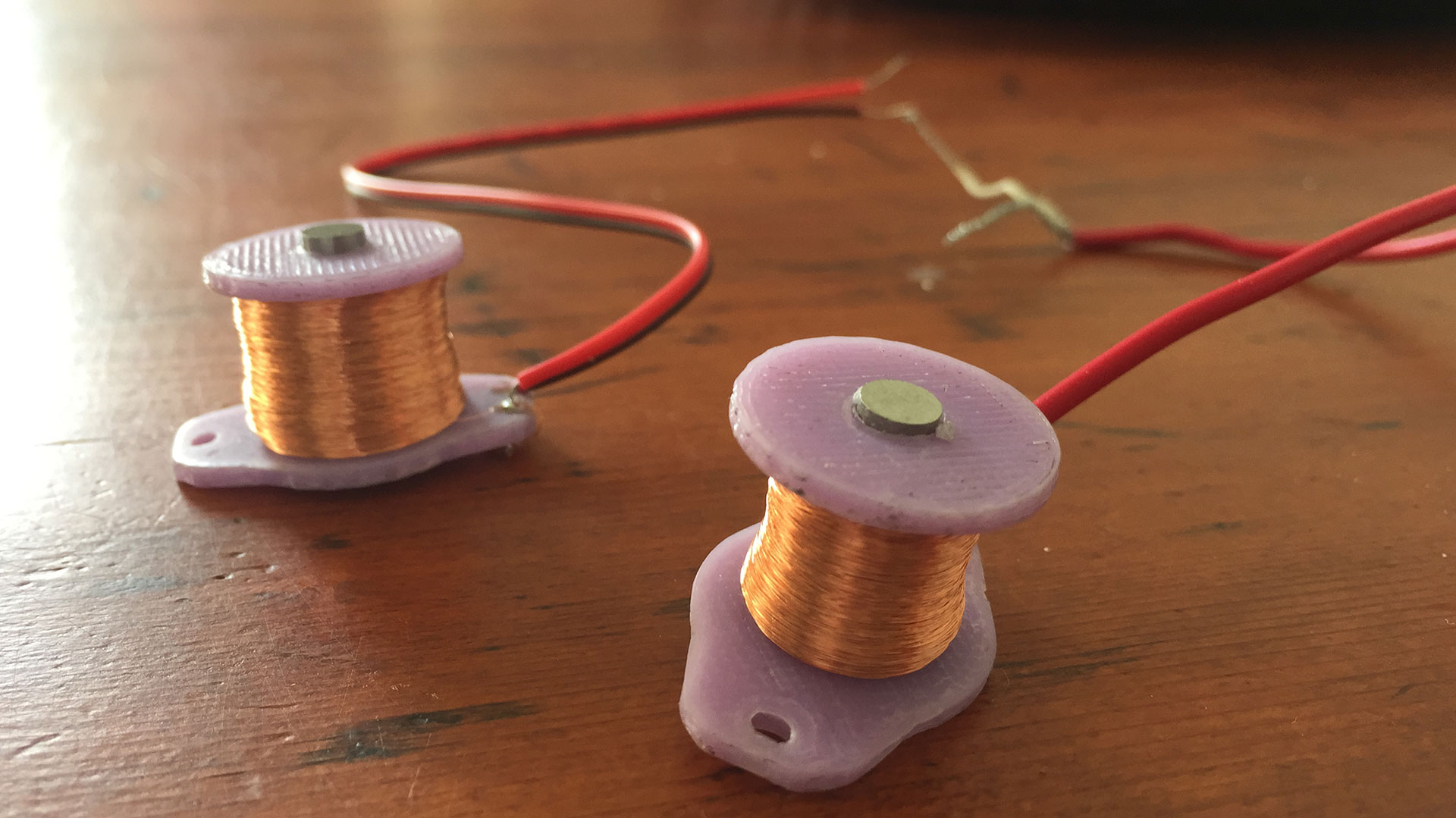

Prototype

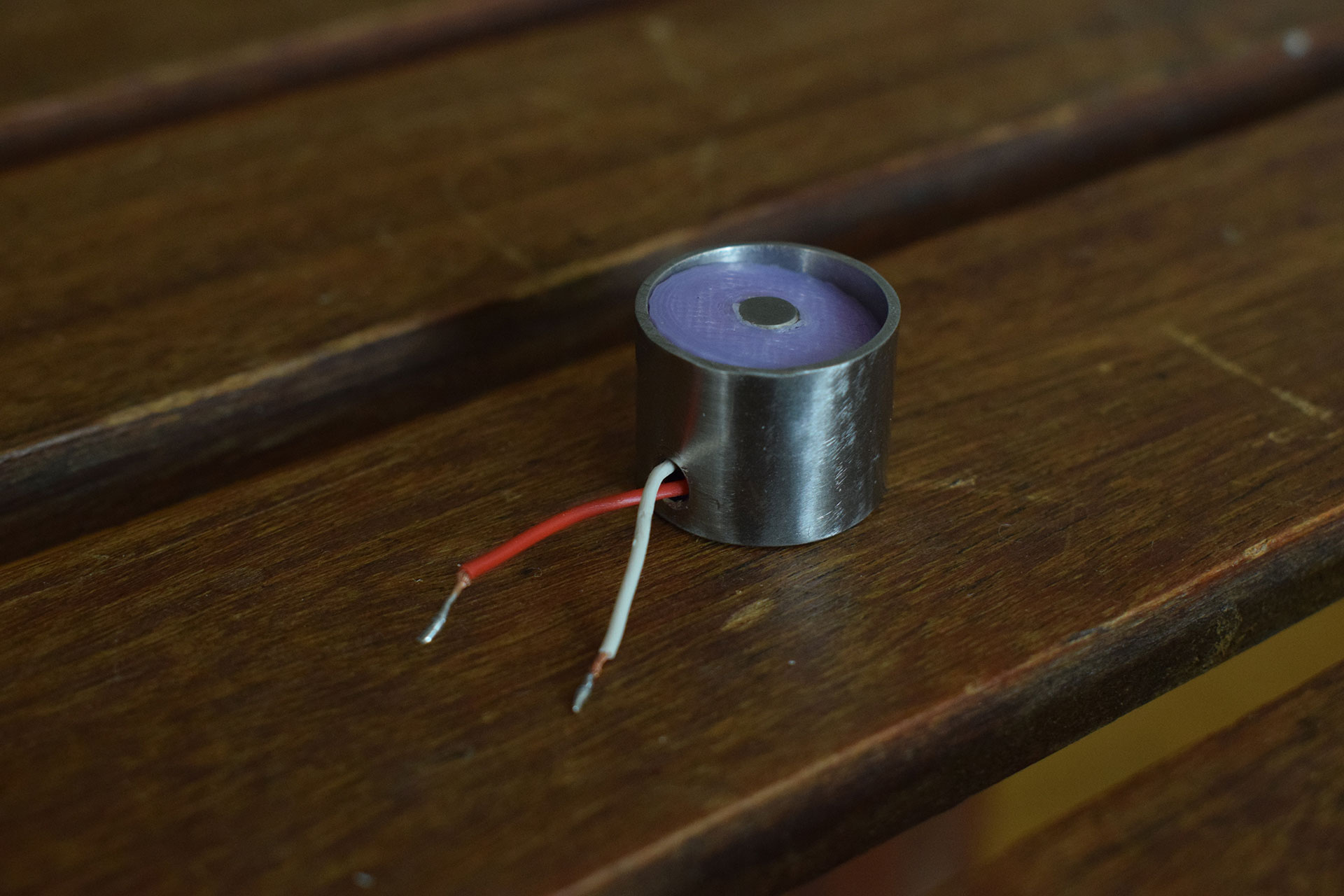

Proto capsule
